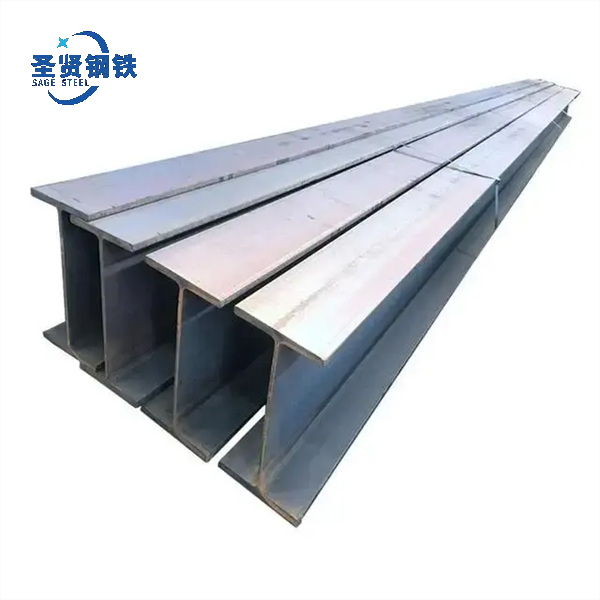

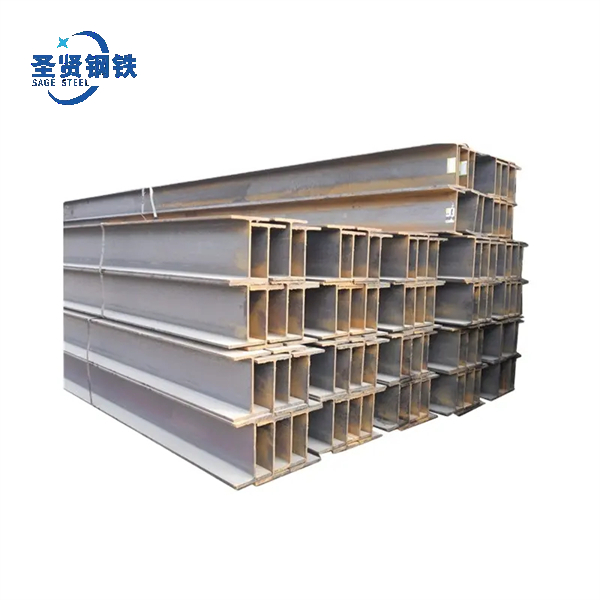

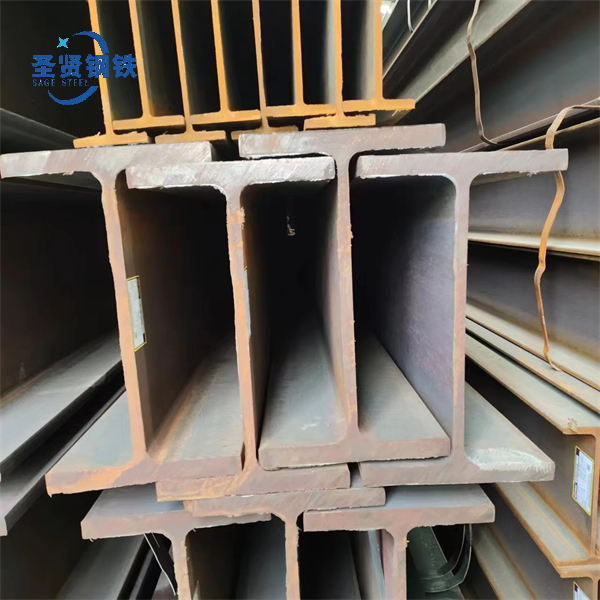

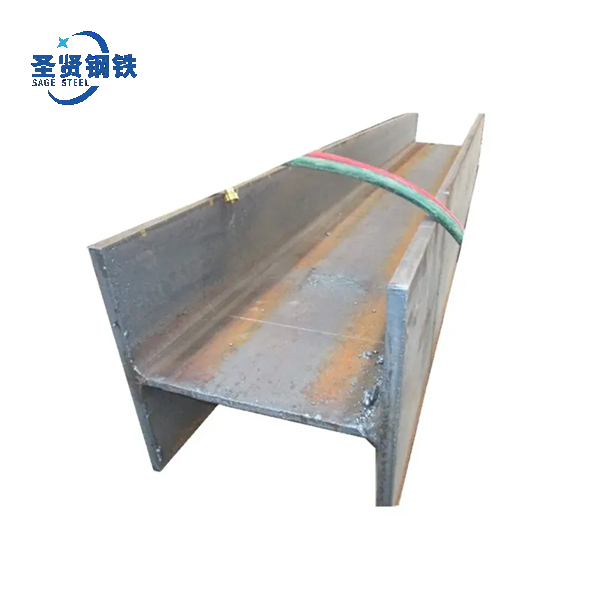

H Beam
H-shaped steel is an economical cross-section high-efficiency section with more optimized cross-sectional area distribution and a more reasonable strength-to-weight ratio. It is named because its cross-section is the same as the English letter "H". Since all parts of the H-shaped steel are arranged at right angles, the H-shaped steel has the advantages of strong bending resistance in all directions, simple construction, cost saving and light structural weight, and has been widely used.
+86 18865249994
+86 18865249994
+86 18865249994
sales01@zgsxgt.com
Contact Us

Product Description

Product NameH Beam
GradeQ195,Q215,Q235,Q345,16Mn,ASTMA36,ASTMA572,SS400,SS490,A36,S235JR,S355JR,ST37,ST52,etc
StandardAISI, ASTM, BS, DIN, GB, JIS, EN,etc
Flange Thickness7-24mmmm
Flange Width50-300mm
Web Thickness5-13mm
Web Width100-700mm
Length5.8m,6m,9m,11.8m,12m or as your requirement
SurfacePerforated/galvanized/black/PaintBright, Polished, Turn smooth(Peeled),Brush, Mill,Pickled
TechniqueHot-rolled and High frequency welded
Application1.Industrial structure of the steel structure bearing bracket 2.Underground engineering steel pile and retaining structure3.Petrochemical and electric power and other industrial equipment structure 4.Large span steel bridge components 5.Ships,machinery manufacturing frame structure 6.The train, automobile, tractor beam bracket7.Port of conveyor belt, high speed damper bracket
PackingIn bulk or container,Standard seaworthy packing or as your required
Delivery TimeWithin 7days
DesignationUnitWeight(kg/m)    Standard Secional    Dimension     (mm)  Sectional   Area    (cm³)
WHBT1T2r     A
HE100A16.796.0100.05.08.012.0  21.24
B20.4100.0100.06.010.012.0  26.04
M41.8120.0106.012.020.012.0  53.24
HE120A19.9114.0120.05.08.012.0  25.34
B26.7120.0120.06.511.012.0  34.01
M52.1140.0126.012.521.012.0  66.41
HE140A24.7133.0140.05.58.512.0  31.42
B33.7140.0140.07.012.012.0  42.96
M63.2160.0146.013.022.012.0  80.56
HE160A30.4152.0160.06.09.015.0  38.77
B42.6160.0160.08.013.015.0  54.25
M76.2180.0166.014.023.015.0  97.05
HE180A35.5171.0180.06.09.515.0  45.25
B51.2180.0180.08.514.015.0  65.25
M88.9200.0186.014.524.015.0  113.3
HE200A42.3190.0200.06.510.018.0  53.83
B61.3200.0200.09.015.018.0  78.08
M103220.0206.015.025.018.0  131.3
HE220A50.5210.0220.07.011.018.0  64.34
B71.5220.0220.09.516.018.0  91.04
M117240.0226.015.526.018.0  149.4
HE240AA47.4224.0240.06.59.021.0  60.38
A60.3230.0240.07.512.021.0  76.84
B83.2240.0240.010.017.021.0  106.0
M157270.0248.018.032.021.0  199.6
HE260AA54.1244.0260.06.59.524.0  68.97
A68.2250.0260.07.512.524.0  86.82
B92.9260.0260.010.017.524.0  118.4
M172290.0268.018.032.524.0  219.6
HE280AA61.3264.0280.07.010.024.078.02
A76.4270.0280.08.013.024.097.26
B103280.0280.010.518.024.0131.4
M189310.0288.018.533.024.0240.2
HE300AA69.8283.0300.07.510.527.088.91
A88.3290.0300.08.514.027.0112.5
B117300.0300.011.019.027.0149.1
M238340.0310.021.039.027.0303.1
HE320AA74.3301.0300.08.011.027.094.58
A97.7310.0300.09.015.527.0124.4
B127320.0300.011.520.527.0161.3
M245359.0309.021.040.027.0312.0
HE340AA78.9320.0300.08.511527.0100.5
A105330.0300.09.516.527.0133.5
B134340.0300.012.021527.0170.9
M248377.0309.021.040.027.0315.8
HE360AA83.7339.0300.09.012.027.0106.6
A112350.0300.010.017.527.0142.8
B142360.0300.012.522.527.0180.6
M250395.0308.021.040.027.0318.8
HE400AA92.4378.0300.09.513.027.0117.7
A125390.0300.011.019.027.0159.0
B155400.0300.013.524.027.0197.8
M256432.0307.021.040.027.0325.8
HE450AA99.8425.0300.010.013.527.0127.1
A140440.0300.011.521.027.0178.0
B171450.0300.014.026.027.0218.0
M263478.0307.021.040.027.0335.4

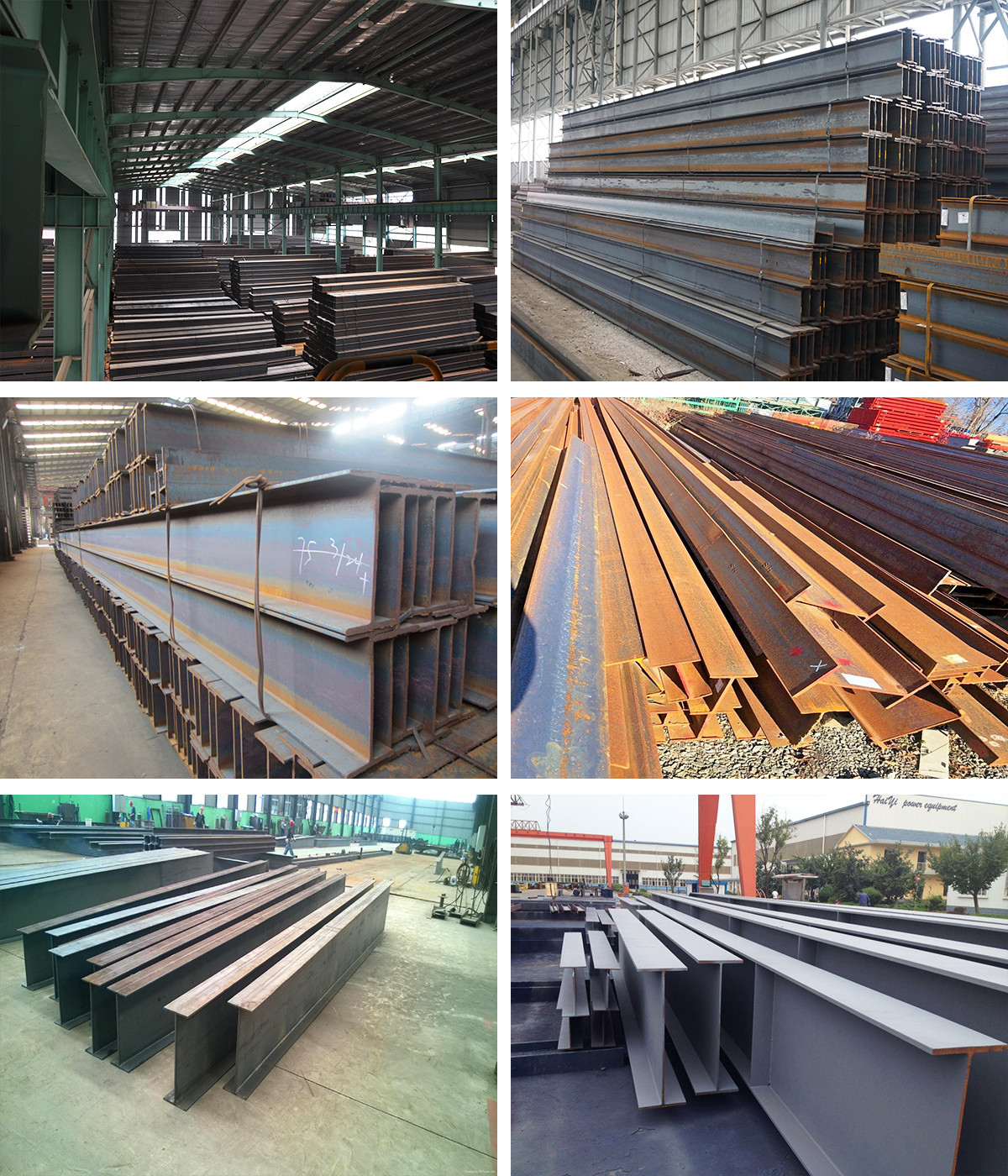

Product Show

H beam01 (2).jpg

FAQ

How can I get your quotation as soon as possible?
The email and fax will be checked within 24 hours, meanwhile, the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement and order information, specification(Steel grade,size,quantity,destination port), we will work out a best price soon.
How to ensure the quality?
Mill Test Certificate is supplied with shipment. If needed, a Third Party Inspection is acceptable or SGS.
How about the MOQ? If my first order qty is small, will you accept?
We would like to do our best to support your trial order qty, so even 1 piece or 1 kg is okay to start cooperation; because we have confidence to move on second order with your esteemed company.
Can you accept customize?
Yes. It can be customized as per the customers' request.
What is the terms of delivery?
EXW, FOB, CIF, CFR, DDU
What's your payment terms?
Payments 30%TT deposit and 70% TT before delivery or L/C at sight. We will show you the photos of products and package before you pay the balance.

Inquiry

Reliable detection！

We accept formal third-party testing institutions for testing, we can also send samples to you free of charge, customer satisfaction shopping experience is always our pursuit
